Where the rules sit in Figma

The behaviour is written in the component's own description — at the component, without leaving the tool. Readable through the API, which is what makes it a channel rather than a note.

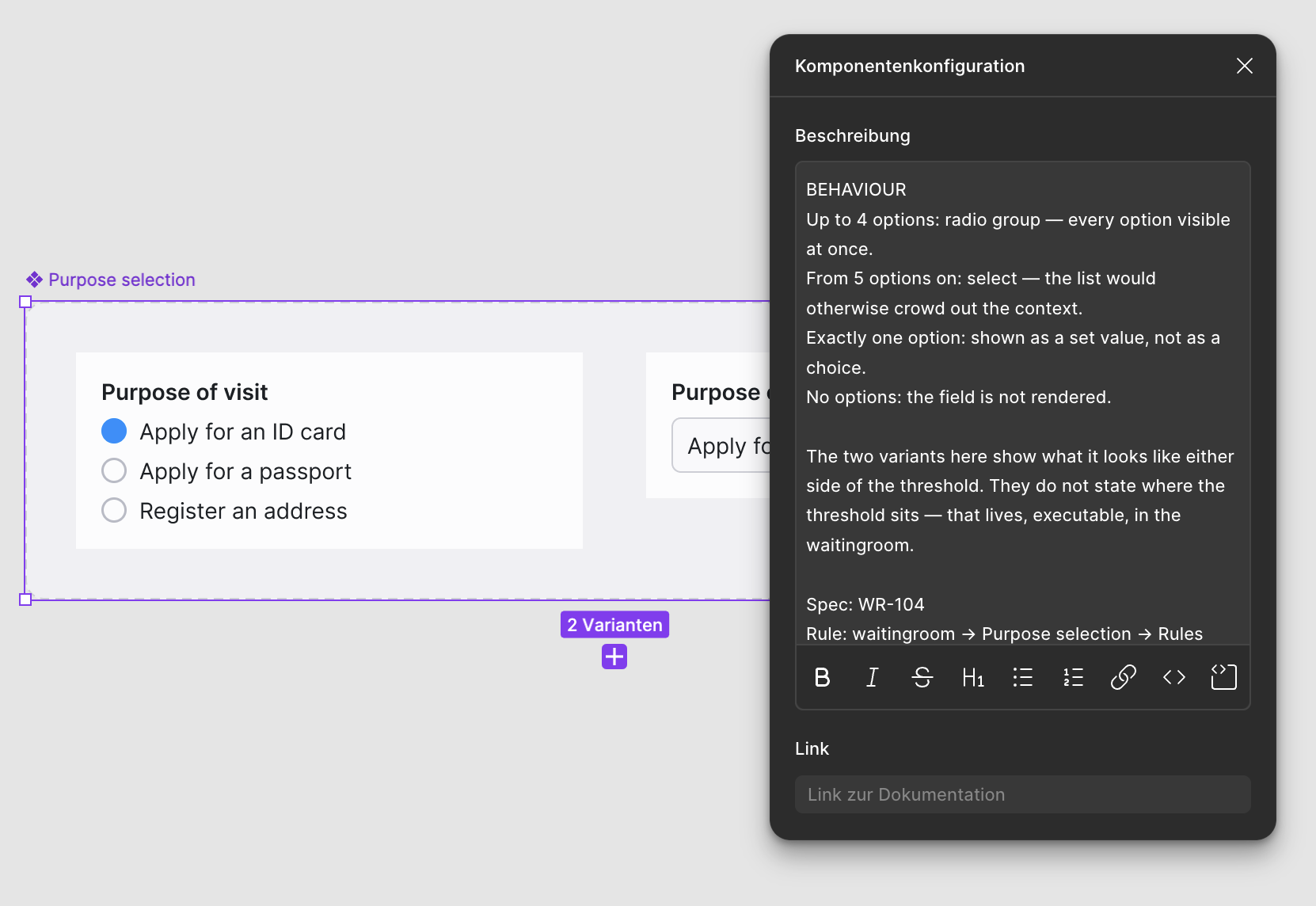

Figma with the Purpose selection component on the canvas and the component configuration panel open beside it, the behaviour typed into the description field.
The description field. Nothing is kept alongside the file — the behaviour lives on the component. (Interface in German.)

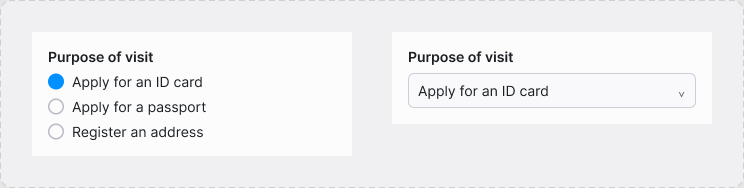

The Purpose selection component set, showing its two variants side by side: a radio group with three options, and a select.
Both sides of the threshold — but not where it sits.

Component description, read back from Figma

BEHAVIOUR
  Up to 4 options: radio group — every option visible at once.
  From 5 options on: select — the list would otherwise crowd out the context.
  Exactly one option: shown as a set value, not as a choice.
  No options: the field is not rendered.

  Spec: WR-104
  Rule: waitingroom → Purpose selection → Rules

Same text, fetched through the API.

What it is not: a full specification. Where the threshold sits, what happens while options load, whether one is preselected — those get settled here, where they can be run. Figma states the intent; this page states every case.

Each component's three views come from one file in rules/. Change a threshold there and prototype, rule text and code change together — there is no second place to keep in sync. All data is synthetic: an invented citizen registration office, no connection to any real case or person.
